EK-HD Tube 12/16mm 3-Slot (2 pcs)

743  (税込)
(税抜 675 )
TUB612
5 個
+

OD16mm アクリルチューブ
アクリル(PMMA) 製
Made with care in EU

Product EAN: 3831109841228

Details

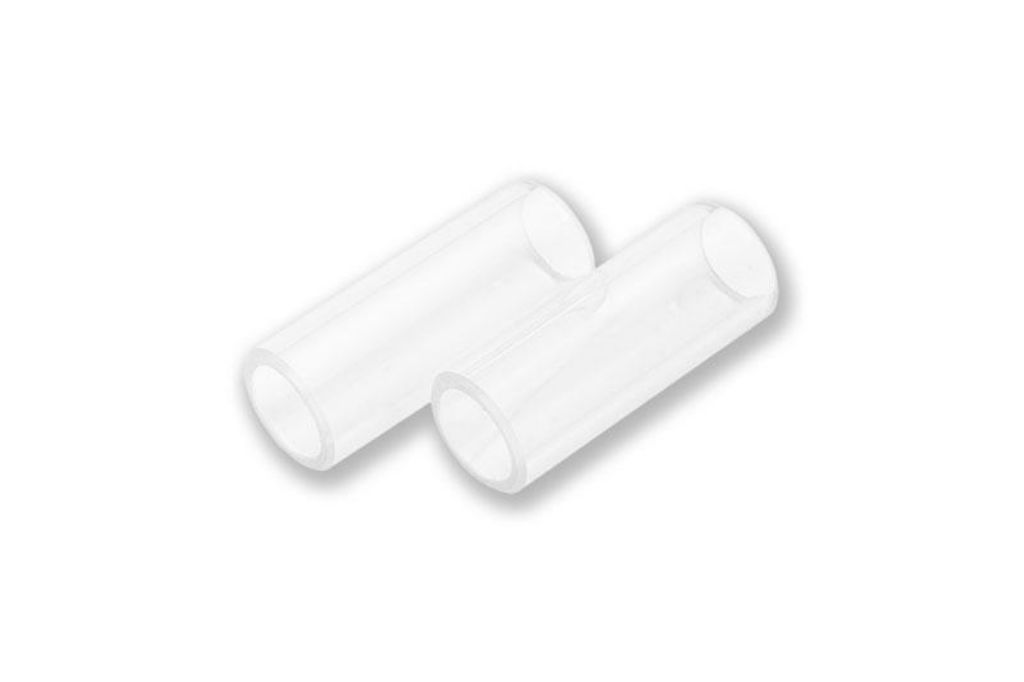

EK-HD Tube is a multiple VGA water blocks connectivity set consisting of a pair of pre-cut solid Acrylic tubes. In conjunction with EK-HD Adapter fittings this EK-HD Tube set can be used as an alternative solution for connecting multiple full-cover GPU water blocks (SLI/CrossFireX).

EK-HD Tube 3-Slot type is intended for use with PCI-Express slots 60.9mm (2.4" apart).


Technical data:
- Inner diameter: 12 mm
- Outer diameter: 16 mm
- Length: 41.00 mm

The package contains 2 pieces of tube only. Please purchase EK-HD Adapter fittings separately!

Made in Slovenia - EU!

For easier installation we recommend wetting the gasket (o-ring) using drops of water prior to installing solid tube.

Important:
These pre-cut tubes are suitable for SLI/CrossFireX connection of modern EK Full Cover water blocks using EK-FC Terminal only! In case of different version (pre-CSQ, CSQ) of water blocks one needs to purchase a longer tube and cut it by himself. It is mandatory to chamfer the edges of freshly cut tube in order to prevent gasket (o-ring) damage. EK recommends a 0,5mm x 45° chamfer.

Additional Info
Threads G1/4

1セット2本の価格です。

チューブサイズ:
  • OD 16 mm
チューブ材質:
アクリル(PMMA)
メーカー:
EK Water Blocks
