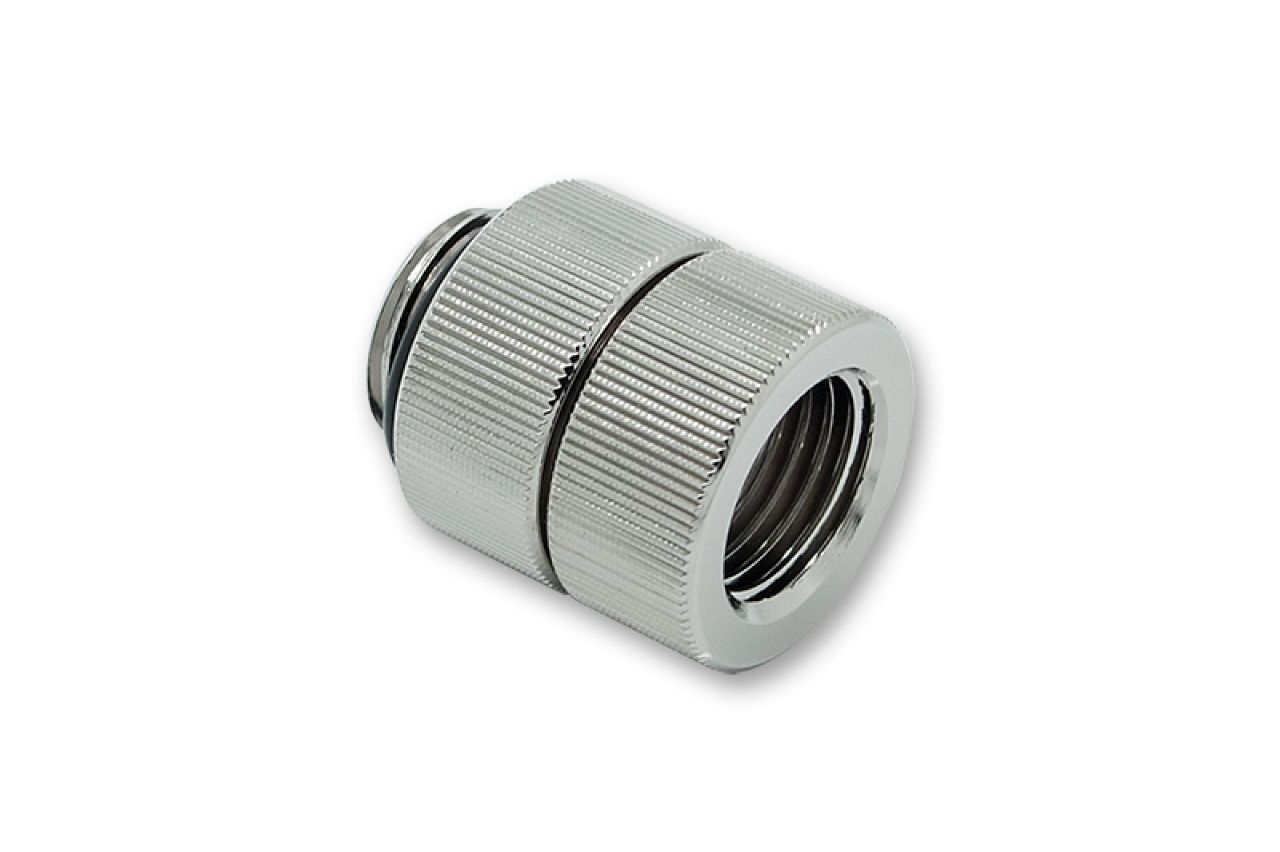

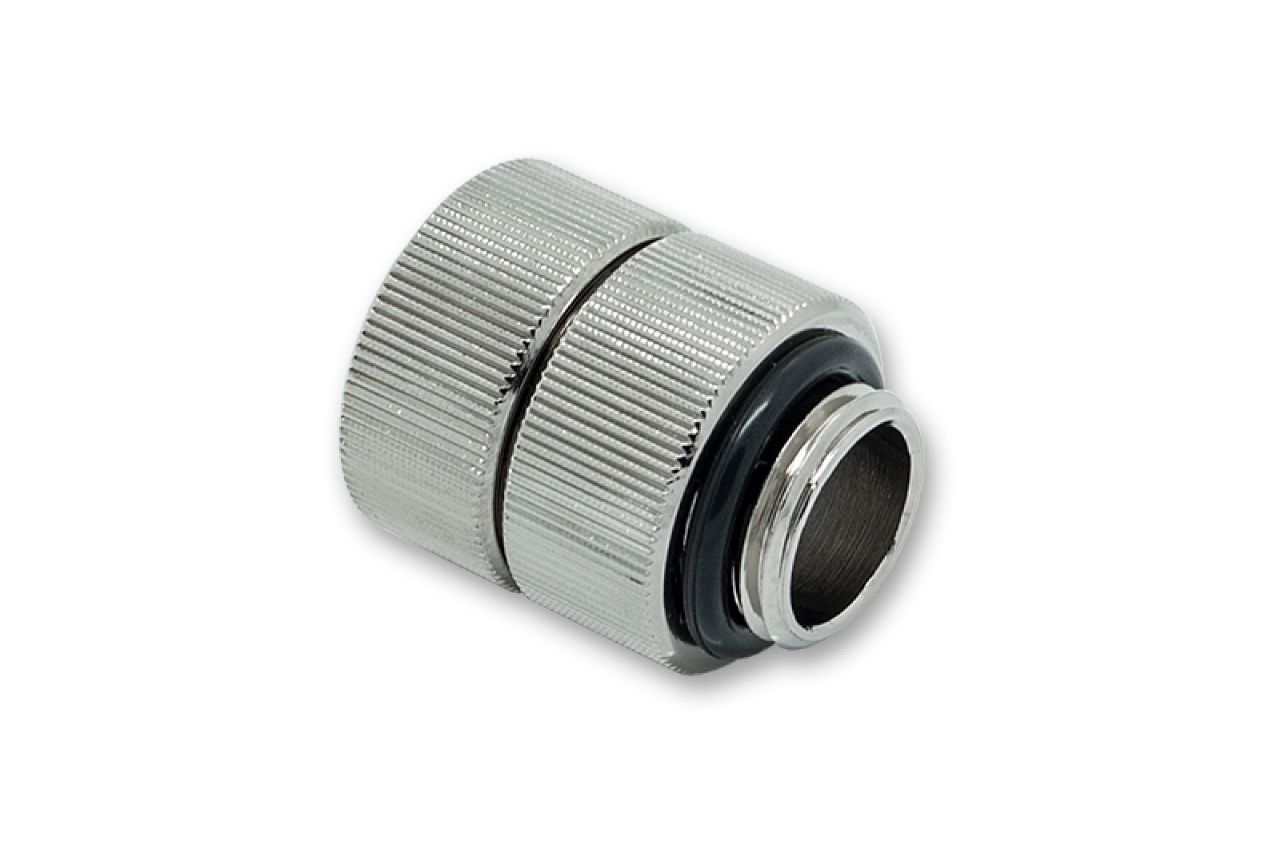

EK-AF Extender Rotary M-F G1/4 - Nickel

G1/4　自在回転　ストレート　オス-メス　中間継手
真鍮ニッケルメッキ製
Made with care in EU

Product EAN:3831109847206

Details
EK-AF Extender Rotary M-F G1/4 is suitable to extend port from block in order to fasten larger fittings that would normally be obstructed by hardware, or you simply wish to extend your G1/4 port. Revolvable option allows you to orientate the fitting in any direction.

Made from nickel-plated CNC machined brass. Sealed with quality orings.

These Extenders are to be tightened by hand.

Technical data:
Threading: 2 x G 1/4" (Male - Female)
Thread length:
- 4.0mm (male)
- 6.0mm (female)

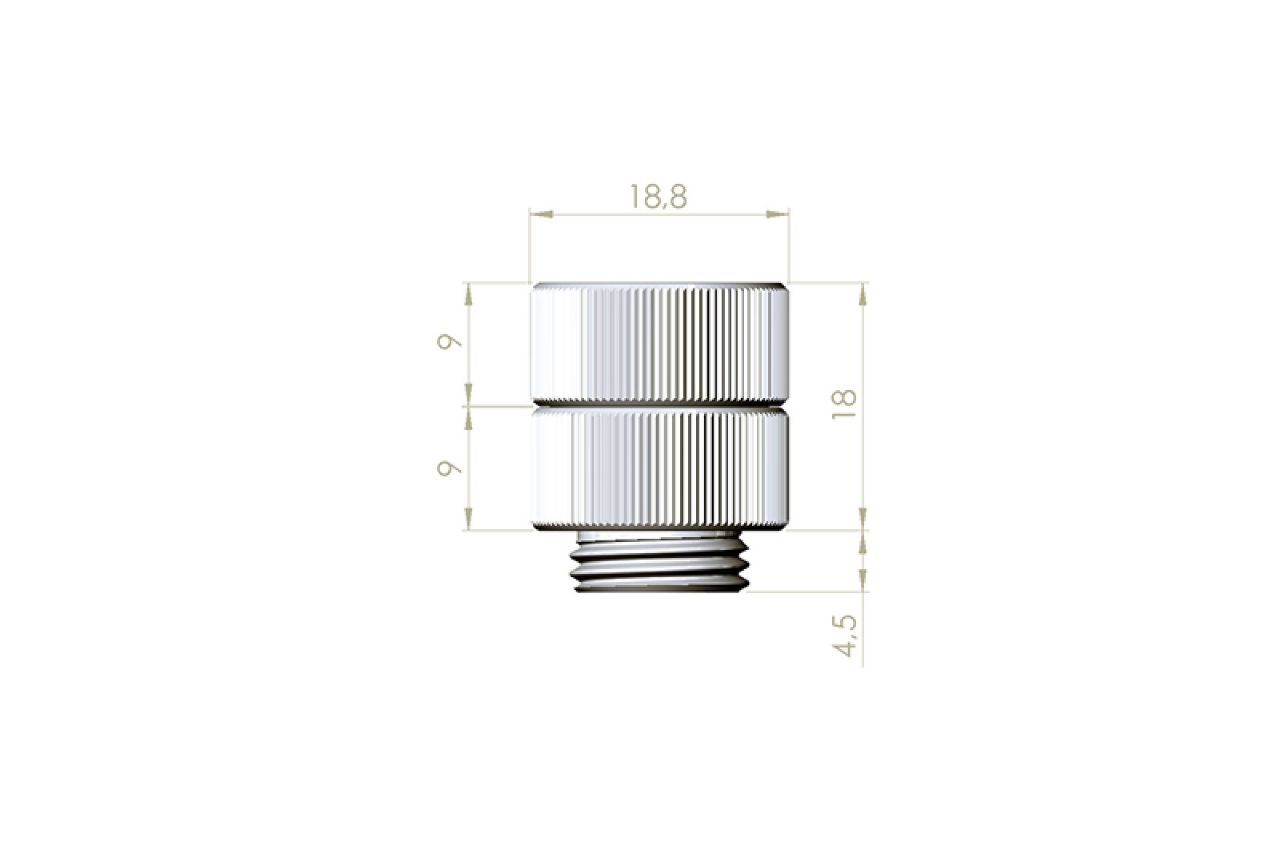

Diameter: 18.8mm
Height: 18.0mm

ROHS 2.0 compliant!

PLEASE NOTE:
This product should NOT be installed with any aluminum Fluid Gaming parts!

Additional Info
Threads G1/4

価格は１個単位ですのでご注意下さい。
