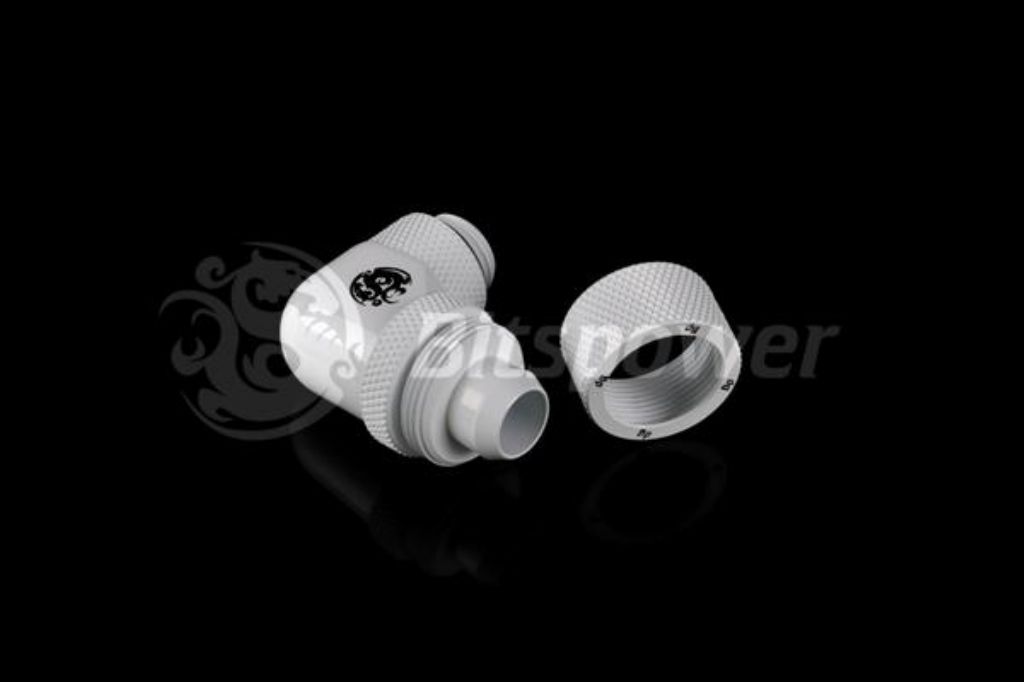

Bitspower G1/4" Deluxe White Dual Rotary 90-Degree Compression Fitting For ID 3/8" OD 5/8" Tube

通常価格: 3,230  (税込)
1,293  (税込)
(税抜 1,175 )
FTG772-DW
49 個
+

在庫処分につきジャンク扱いで販売します、Oリングの劣化等はご自身でスペアを用意して下さい。


G1/4フェルールレス フィッティング

内径3/8インチ / 外径5/8インチチューブ(10 - 16 mm)用


BP-DW90R2LCPF-CC3V2


Features:

1. True Hi-Flow Design.

2. Hi Quality Brass Material.

3. 90-Degree Type With Dual 360-Degree Rotation.

4. Bitspower High Durability E-Plated Technology In White Color.

5. Hiding O-Ring Design.

6. Compact Design For 90-Degree Rotary With Fitting CC3 For ID 3/8" OD 5/8" Tube Application.

7. RoHS Compliant.

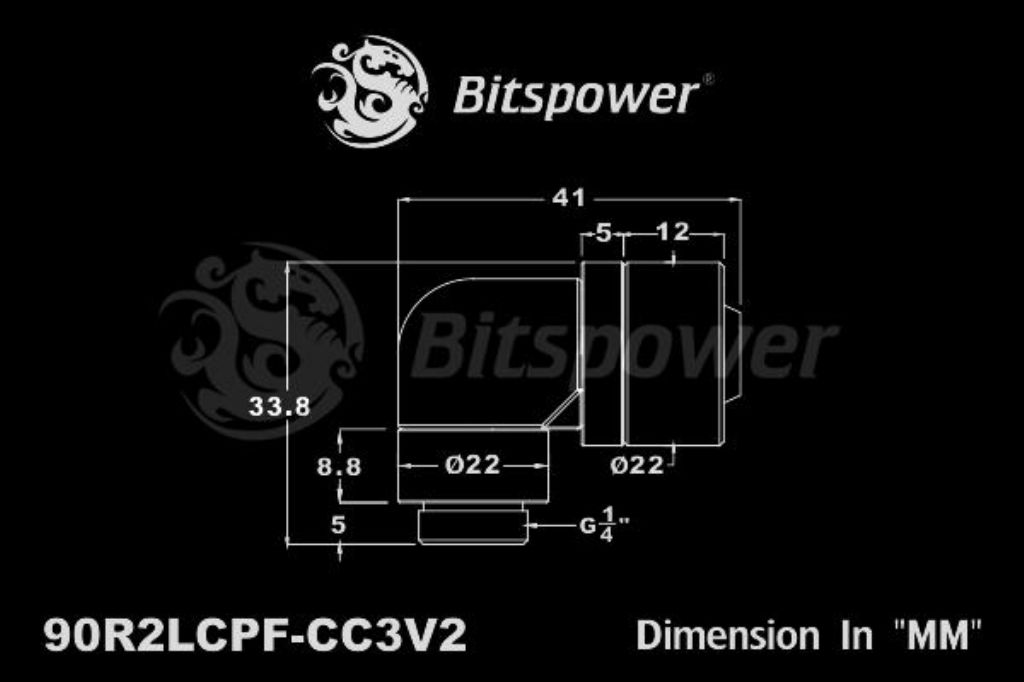

Thread : G1/4"

Thread Length : 5MM

Tubing Size : ID 3/8" OD5/8"

価格は1個単位ですのでご注意下さい。

アングル角度
:
90°
チューブサイズ:
  • ID 3/8 - OD 5/8 (10-16 mm)
フィッティング ネジ:
  • G1/4 Male(雄ネジ)
メーカー:
Bitspower
