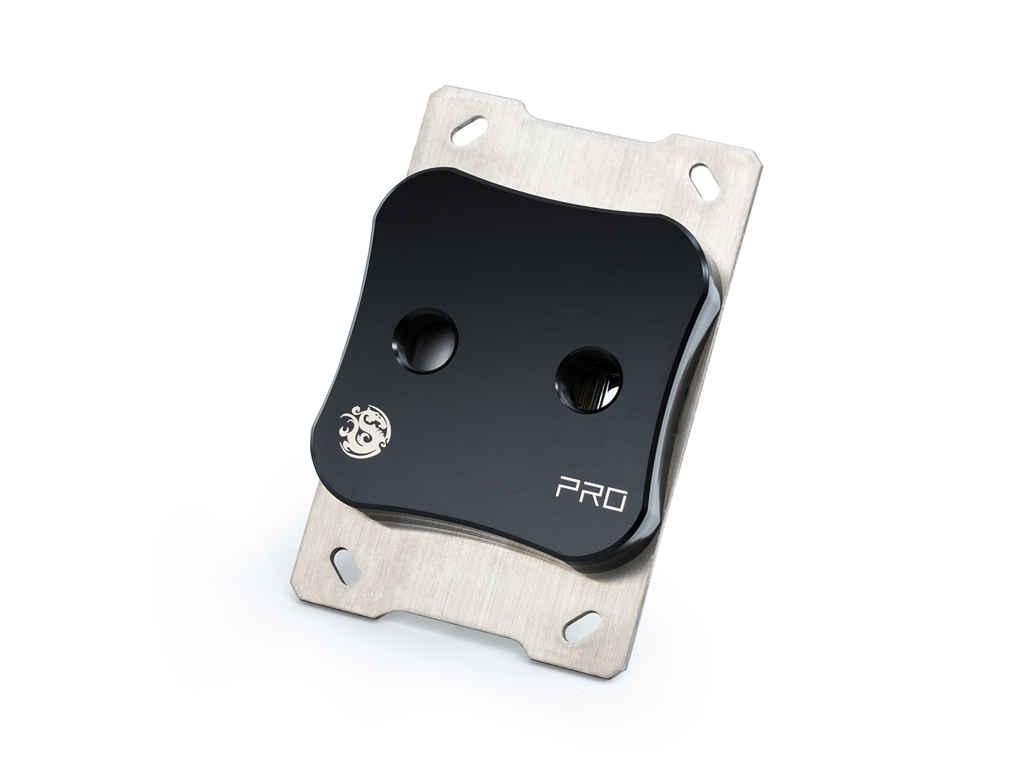

Bitspower CPU Block Summit M Pro - Black(AMD AM5,AM4)

15,689  (税込)
(税抜 14,263 )
BP-CPUMPROA-BK
10 個
+

Bitspower CPU Block Summit M Pro - Black(AMD AM5,AM4)

ベースプレート 銅製
トップ アセタール樹脂製
Made in Taiwan


Product Code : BP-CPUMPROA-BK

Bitspower CPU Block Summit M Pro - Black(AMD AM5,AM4)



Bitspower CPU Block Summit M Pro - Black ( AMD ver. ) is an efficient solution for AMD CPU water cooling. Including brackets and accessories for AMD platforms, this CPU block is all you’ll need to keep your processor from overheating.

Bitspower CPUブロック Summit M Pro - ブラック (AMDバージョン) は、AMD CPU水冷に最適なソリューションです。AMDプラットフォーム用のブラケットとアクセサリーが付属しており、このCPUブロックだけでプロセッサの過熱を抑制できます。

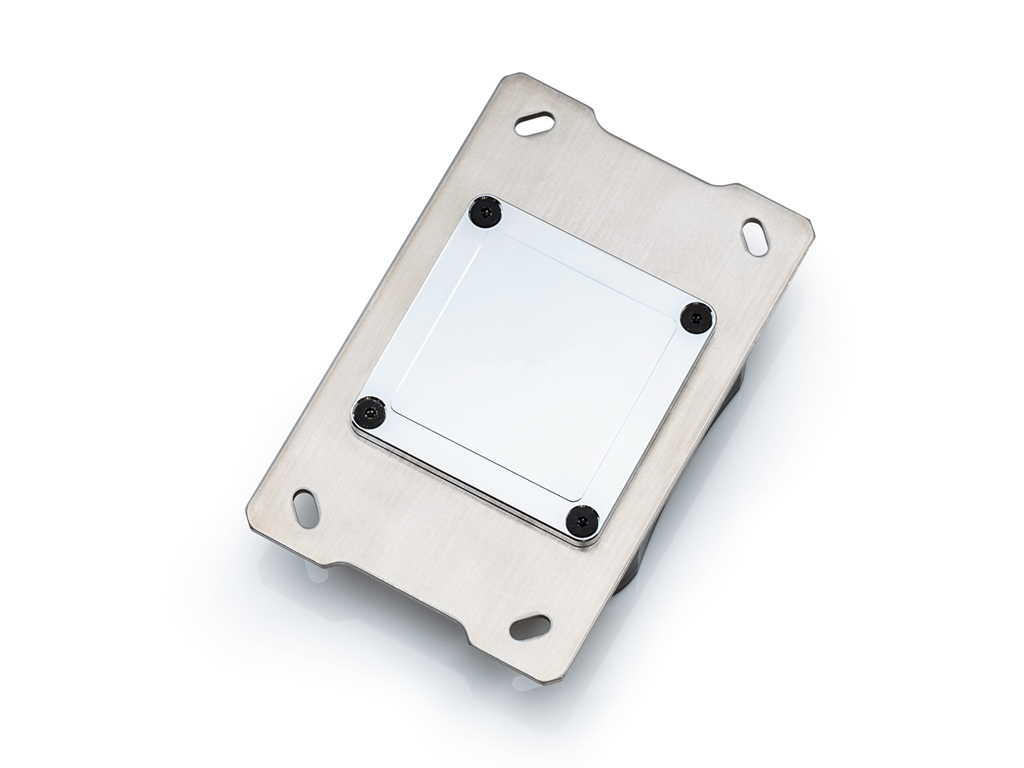

In order to make heat exchange as efficient as possible, the copper base plate features a layer of 0.3mm fins/channels to increase the surface area, which is essential for heat dissipation. Bitspower water injection design brings a high flow of coolant directly on top of these fins for immediate cooling which is essential for optimal heat dissipation.

熱交換を可能な限り効率的にするため、銅製ベースプレートには0.3mmのフィン/チャネル層が設けられ、表面積を増加させています。これは放熱に不可欠です。Bitspowerのウォーターインジェクション設計は、これらのフィンの上に高流量の冷却剤を直接供給することで、最適な放熱に不可欠な瞬時の冷却を実現します。

Thread : G1/4" x 2

Included(付属品) :
1Set of BP-CPUMPROA-BK
1Set of BPA-TP1-2.5G
1Set of Mounting Screws/Accessories

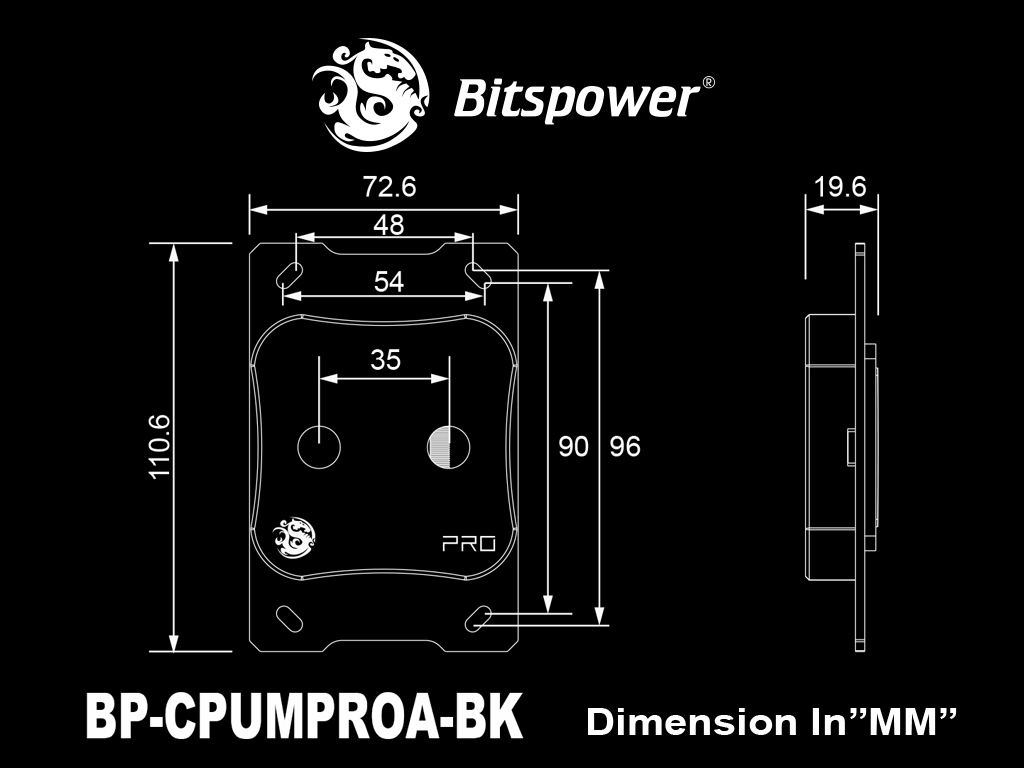

Dimension(LxWxH) : 110.6 x 72.6 x 19.5 MM


Support Socket(対応ソケット)

Socket AM4 / AM5

Dimension(LxWxH) : 110.6x72.6x19.6 MM


*** Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product. ***

Bitspowerは製品のデザインおよび解釈を変更する権利を留保します。これらは予告なく変更される場合があります。製品の色および付属品は実際の製品に基づいています。

*** From 15th March 2018, all of our installation guides will be provided electronically via an easy-to-use QR code attached to the packaging. ***

2018 年 3 月 15 日より、当社のすべてのインストール ガイドは、パッケージに添付された使いやすい QR コードを通じて電子的に提供されるようになります。

*** Before filling in the water, please make sure all the components are installed correctly. To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test with only the pump connected to the power supply. ***

水を入れる前に、すべての部品が正しく取り付けられていることを確認してください。PC部品の損傷につながる可能性のある漏れを防ぐため、ポンプのみを電源に接続した状態で24時間漏れテストを実施してください。

*** When using the leak tester on a water cooling loop, in order to avoid product damage due to excessive pressure, the input pressure should not exceed 0.5kg/cm2 (bar), and do not over 30 second. The leak tester must not be used when there is water in the loop or when the pump is running. If the product is damaged due to excessive pressure or incorrect use, Bitspower's product warranty will be null and void, and the cost of any damage to the hardware will be borne by the customer. ***

水冷ループでリークテスターを使用する場合、過度の圧力による製品の損傷を防ぐため、入力圧力は0.5kg/cm²(bar)を超えず、30秒以上使用しないでください。ループ内に水がある場合、またはポンプが作動しているときは、リークテスターを使用しないでください。過度の圧力または不適切な使用により製品が損傷した場合、Bitspowerの製品保証は無効となり、ハードウェアの損傷にかかる費用はお客様の負担となります。

インストレーションマニュアル (BP-CPUMPROA-DRGB_V1_IG.pdf, 413 Kb) [ダウンロード]

AM5マウント (BP-CPUPDB-AMD5_V1_IG.pdf, 454 Kb) [ダウンロード]

CPUソケット:
  • AMD Socket AM4
  • AMD Socket AM5
メーカー:
Bitspower
