6HV Motor kv 505

19,061 円 (税込)
(税抜 17,328 円)
RC-C-4026
2 個
+ −

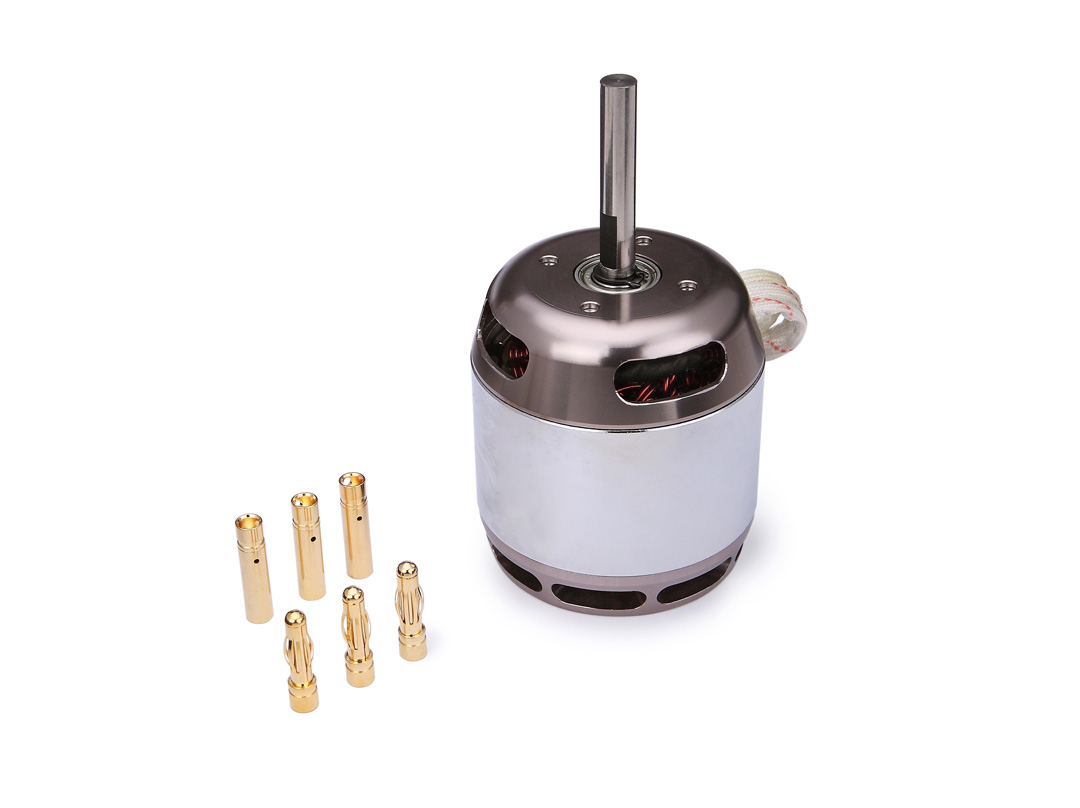

6HV Ult ブラシレスモーター

C4026仕様

●Stator Diameter: 40mm
●Stator Thickness: 24mm
●Stator Sheet Thickness: 0.2mm
●Outside Diameter: 51mm
●Body Length: 56mm
●Motor kV: about 505kV RPM/Volt
●Weight: 355g
●Shaft: 5.98mm
●Overall Shaft Length: 90.5mm
●Max Curerent：N/A
●Free Shaft Length: 34mm
●Maximum Li-Po Cell: 14S
●Maximum Peak Current: 140A (5 seconds)
●Maximum Continues Current: 100A
●Max Continuous Power: 4200 Watts
●Number of Stator Slots: 15
●Number of Poles: 10
●Motor Wind: 4 turn Y
●Motor Wire: 1.0mm Double-strand
●Drive Frequency: 8kHZ

Model & Type:
  • ATOM 6HV Ultimate
Parts Type:
Spar Parts
メーカー:
Compass Model
