EK-Quantum Vector Strix RX 6800/6900 DRGB - Nickel + Plexi

23,263  (税込)
(税抜 21,148 )
WBE5042
3 個
+

ASUS ROG Strix RX6800, 6800XT, 6900XTグラフィックカード専用水枕


EKの互換性確認サイトで確認をお願い致します。


仕様
Water Block本体: 銅製ベースプレート(ニッケルメッキ仕上)・アクリル樹脂製トップカバー
フィッティングは別売りとなっております
ホース接続口: G1/4

VGA用フルカバー ウォーターブロック装着時にご注意下さい
VGA用フルカーバー水枕は各機種ごとに個別に作られていますがリファレンス基盤の標準的な配置を元に製造設計されております。
これは固定ネジの配置や各チップの位置が同じと言うだけでありチップキャパシタやチップレジスターは実際にカードを製造するメーカーによって採用しているパーツが違い高さなどが微妙に異なる可能性がありカードによってはチップパーツが水枕に接触する可能性があります。
従いまして水枕をVGAカードに装着する時には不必要な箇所の接触が無いかを必ず確認して下さい、接触が有る場合はその部分を削る必要がございますので予めご了承下さい

特記事項
EK Waterblocks製Full Cover水枕にてベースプレート側の取り付けねじ穴が緩かったり位置がすれている等の場合は固定ネジを無理にねじ込まないで直ぐに当店へご連絡下さい、 無理にねじ込んだ結果ねじ穴のメッキが剥がれた場合はねじ穴不良のメーカー保証が無くなります(メーカはメッキが剥がれた事で無理にねじ込んだと判断して います、当店でも保証致しかねます)。装着前にまず規定のネジがスムーズにねじ込めるかを確認の後に装着作業を始めて下さいます様お願い致します。

Product EAN : 3831109836774


Details

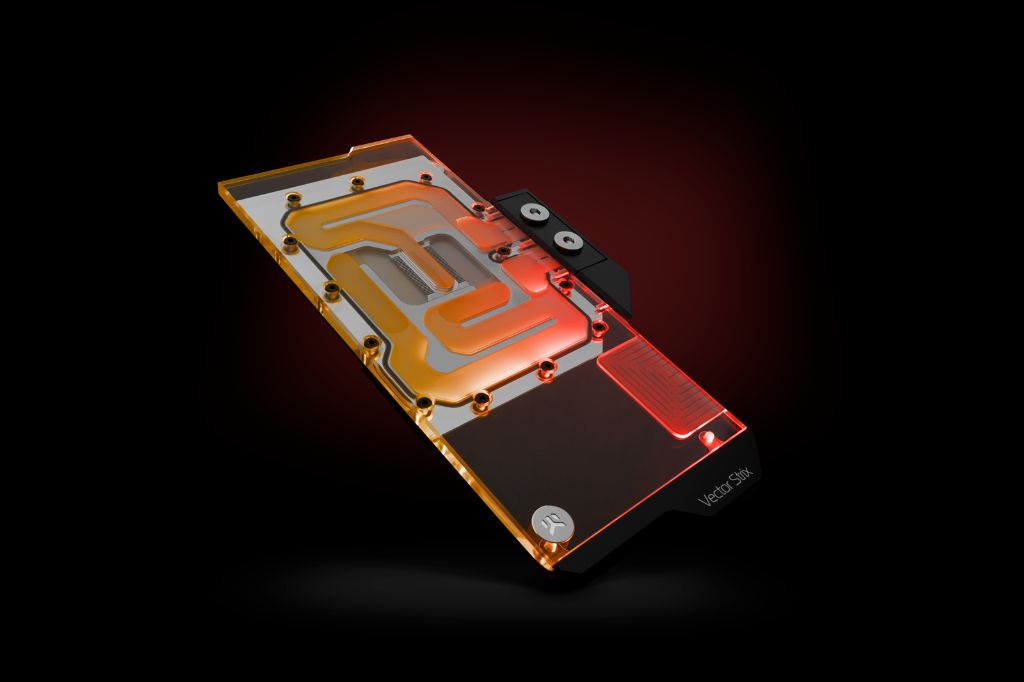

EK-Quantum Vector Strix RX 6800/6900 is a 2nd generation Vector GPU water block from the EK® Quantum Line. It is made for ROG Strix RX 6800, 6800XT, 6900XT graphics cards based on the latest AMD® RDNA2™ architecture. For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.

EK-Quantum Vector Strix RX 6800/6900は、EK®QuantumLineの第2世代VectorGPUウォーターブロックです。 これは、最新のAMD®RDNA2™アーキテクチャに基づくROG Strix RX 6800、6800XT、6900XTグラフィックスカード用に作られています。 このウォーターブロックの正確な互換性の一致については、EK CoolingConfiguratorを参照することをお勧めします。


EK water block for ASUS Strix 6800 6800XT and 6900XT

EK-Quantum Vector Strix RX 6800/6900 water block for ROG Strix GAMING RX 6800 and 6900 GPUs

EK-Quantum Vector RX 6800/6900 water block is compatible with ASUS® ROG Strix GAMING Radeon RX 6800, RX 6800XT, and 6900XT graphics cards. The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with power stages as well as Inductor chokes to maximize cooling and minimize the chances of coil whine.

EK-Quantum Vector RX 6800/6900ウォーターブロックは、ASUS®ROGStrix GAMING Radeon RX 6800、RX 6800XT、および6900XTグラフィックスカードと互換性があります。 ベクターウォーターブロックは、GPU、VRAM、およびVRM(電圧調整モジュール)を直接冷却します。これは、冷却液がこれらの重要な領域に直接送られるためです。 ウォーターブロックは、冷却を最大化し、コイル鳴きの可能性を最小限に抑えるために、パワーステージおよびインダクタチョークと接触しています。

EK water block for ASUS Strix 6800 6800XT and 6900XT

These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.

これらの新しく開発されたウォーターブロックは、流体力学的不安定性とその内部の渦(デッドスポット)を低減する最適化された流路を備えています。 EK-Quantum Vectorシリーズウォーターブロックは、オープンスプリットフロー冷却エンジン設計を使用しており、GPUウォーターブロックの優れたソリューションであることが証明されています。 油圧流量制限が低いという特徴があります。つまり、弱いウォーターポンプや低速設定で動作するポンプで使用でき、それでも最高のパフォーマンスを実現できます。 ジェットプレートとフィン構造の形状は、特定の冷却剤の流れの方向で使用した場合に、損失を最小限に抑えて最適な性能で均一な流れの分布を提供するように最適化されています。

EK water block for ASUS Strix 6800 6800XT and 6900XT

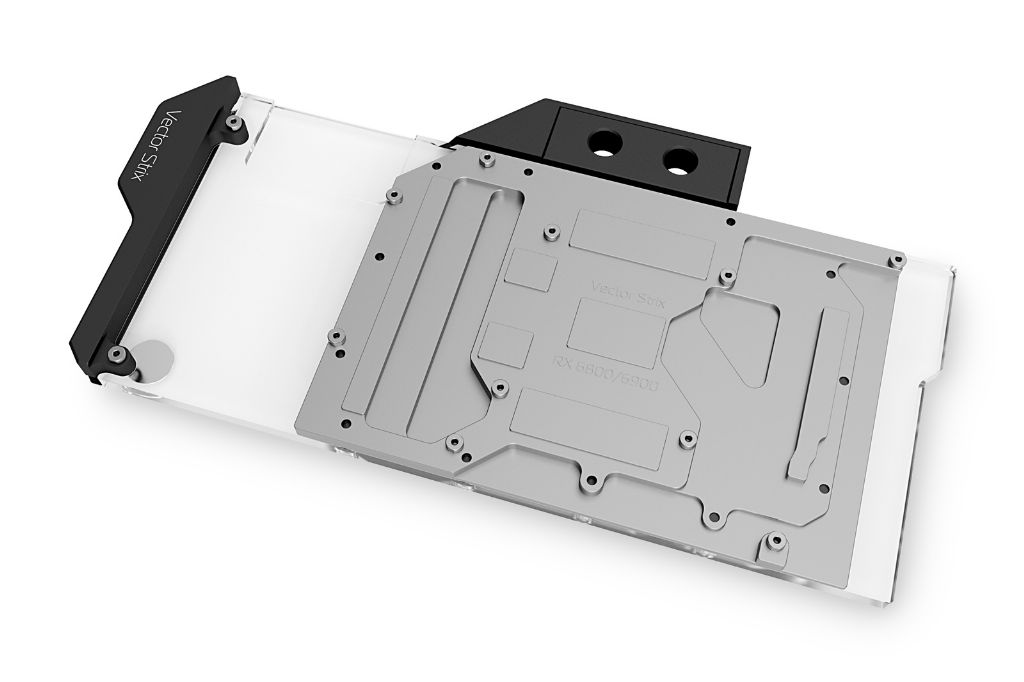

The base of the block is CNC-machined out of high-grade nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. These 2nd generation Vector GPU water blocks also feature acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure.

ブロックのベースは高品質のニッケルメッキ電解銅でCNC機械加工されており、上部はガラスのような鋳造アクリルでCNC機械加工されています。 これらの第2世代のVectorGPUウォーターブロックは、アセタール端子も備えています。 真ちゅう製のスタンドオフはすでに取り付けられており、安全で簡単な取り付け手順が可能である一方で、水密シールは高品質のEPDMOリングによって保証されています。

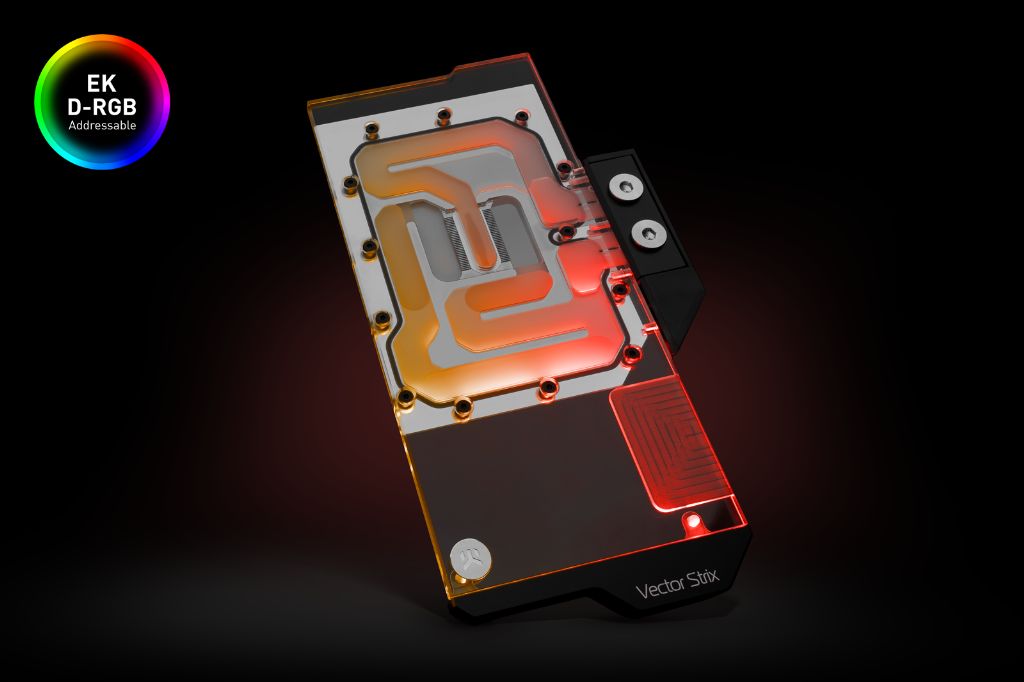

D-RGB lighting on EK-Quantum Vector Strix RX 6800/6900 D-RGB water block

The aesthetic end-piece is housing the addressable D-RGB LED strip. These water blocks boast a total of 9 individually addressable RGB LEDs, and a LED-lit terminal. They are compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.

審美的なエンドピースは、アドレス指定可能なD-RGBLEDストリップを収納しています。 これらのウォーターブロックは、合計9つの個別にアドレス指定可能なRGB LEDと、LED点灯端子を備えています。 これらは、すべての主要なマザーボードメーカーの一般的なRGB同期テクノロジと互換性があります。 3ピンD-RGBLEDコネクタの矢印マーキングは、D-RGB(アドレス指定可能)ヘッダーの+ 5Vマーキングと位置合わせされます。

Backplate for the Strix 6800/6900 water block

EK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core and backside of the printed circuit board VRM and VRAM sections.

EKは、グラフィックカードの全体的な美観を向上させ、GPUコアとプリント回路基板のVRMおよびVRAMセクションの裏側に追加のパッシブ冷却を提供する保持バックプレートの購入をお勧めします。


Enclosed:

- EK-Quantum Vector Strix RX 6800/6900 series high-performance water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
Thermal grease EK-TIM Ectotherm (1g)


Technical Specification:

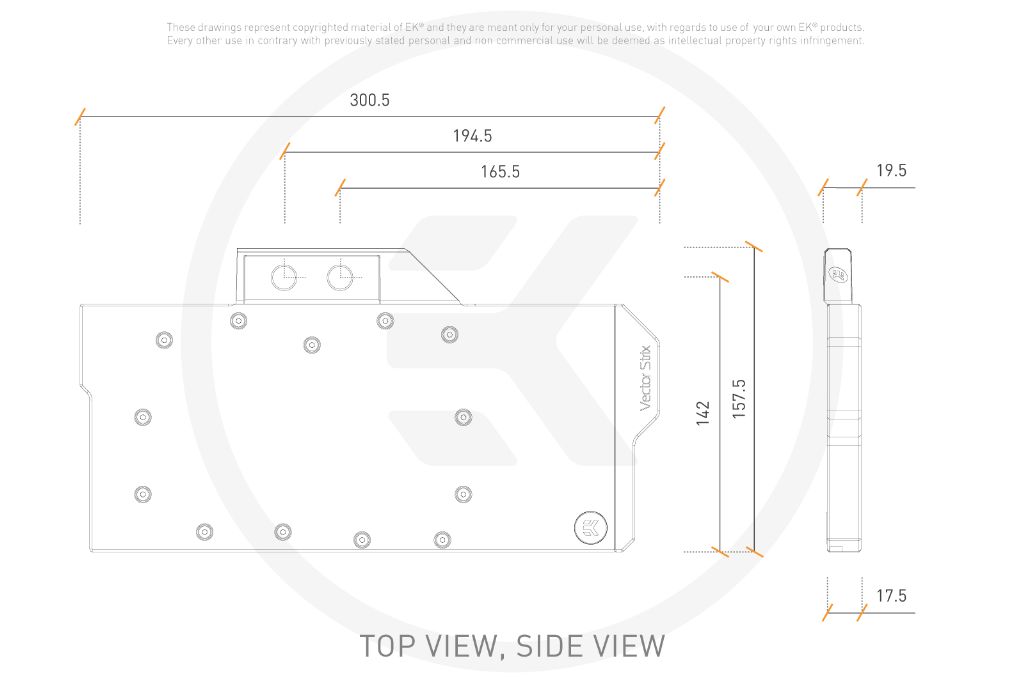

- Dimensions: (LxHxW) - 300.5x157x19.5mm

Made in Slovenia - Europe!


PLEASE NOTE:

  • This block is made for ROG STRIX PCB RX 6800/6900 cards.
  • Due to the immense variety of fittings/barbs available on the market, we guarantee compatibility only with EK fittings.
  • Factory backplates are not compatible with this water block!
  • Check your toolbox if you are missing this special Hex adapter for some of the screws.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!

Additional Info

Material / Design / Color optionNickel Plexi
ThreadsG1/4
Chip ManufacturerNvidia GeForce








GPUタイプ:
  • ATI Radeon RX 6800/6900
メーカー:
EK Water Blocks
